MacroPlacement

Code Elements in Circuit Training

The code elements below are the most crucial undocumented portions of Circuit Training. We thank Google engineers for Q&A in a shared document, as well as live discussions on May 19, 2022, that have explained aspects of several of the following code elements used in Circuit Training. All errors of understanding and implementation are the authors’. We will rectify such errors as soon as possible after being made aware of them.

• Gridding determines a dissection of the layout canvas into some number of rows (n_rows) and some number of columns (n_cols) of gridcells. In Circuit Training, the purpose of gridding is to control the size of the macro placement solution space, thus allowing RL to train within reasonable runtimes. Gridding enables hard macros to find locations consistent with high solution quality, while allowing soft macros (standard-cell clusters) to also find good locations.
• Grouping ensures that closely-related standard-cell logic elements, which connect to the same macro or the same clump of IOs (denoted as an IO cluster), belong to the same standard-cell clusters.
• Hypergraph clustering clusters millions of standard cells into a few thousand clusters. In Circuit Training, the purpose of clustering is to enable an approximate but fast standard-cell placement that facilitates policy network optimization.

We are glad to see grouping (clustering) added to the Circuit Training GitHub. However, these grouping (clustering) scripts still rely on the wrapper functions of plc_client, which is a black box for the community. In this doc, we document the implementation details of gridding, grouping and clustering. We implement all the code elements from scratch using python scripts, and our code produces results that exactly match those of Circuit Training.

Note that we build our implementation on top of the OpenROAD application. You will need to build your own OpenROAD binary before you can run our scripts. We also provide the flow.py, which runs Gridding, Grouping and Hypergraph Clustering in sequence.

Table of Contents

• Gridding
• Grouping
• Hypergraph Clustering (soft macro definition)

Gridding

In Circuit Training, the purpose of gridding is to control the size of the macro placement solution space, thus allowing RL to train within reasonable runtimes. Gridding enables hard macros to find locations consistent with high solution quality, while allowing soft macros (standard-cell clusters) to also find good locations.

Gridding determines a dissection of the layout canvas into some number of rows (n_rows) and some number of columns (n_cols) of gridcells.

The choice of n_rows and n_cols is made once for each design. Once the dimensions (n_rows, n_cols) have been chosen, their values define a gridded canvas, or grid, and remain fixed throughout Circuit Training for the given design. The detailed algorithm is as follows (Algorithm 1).

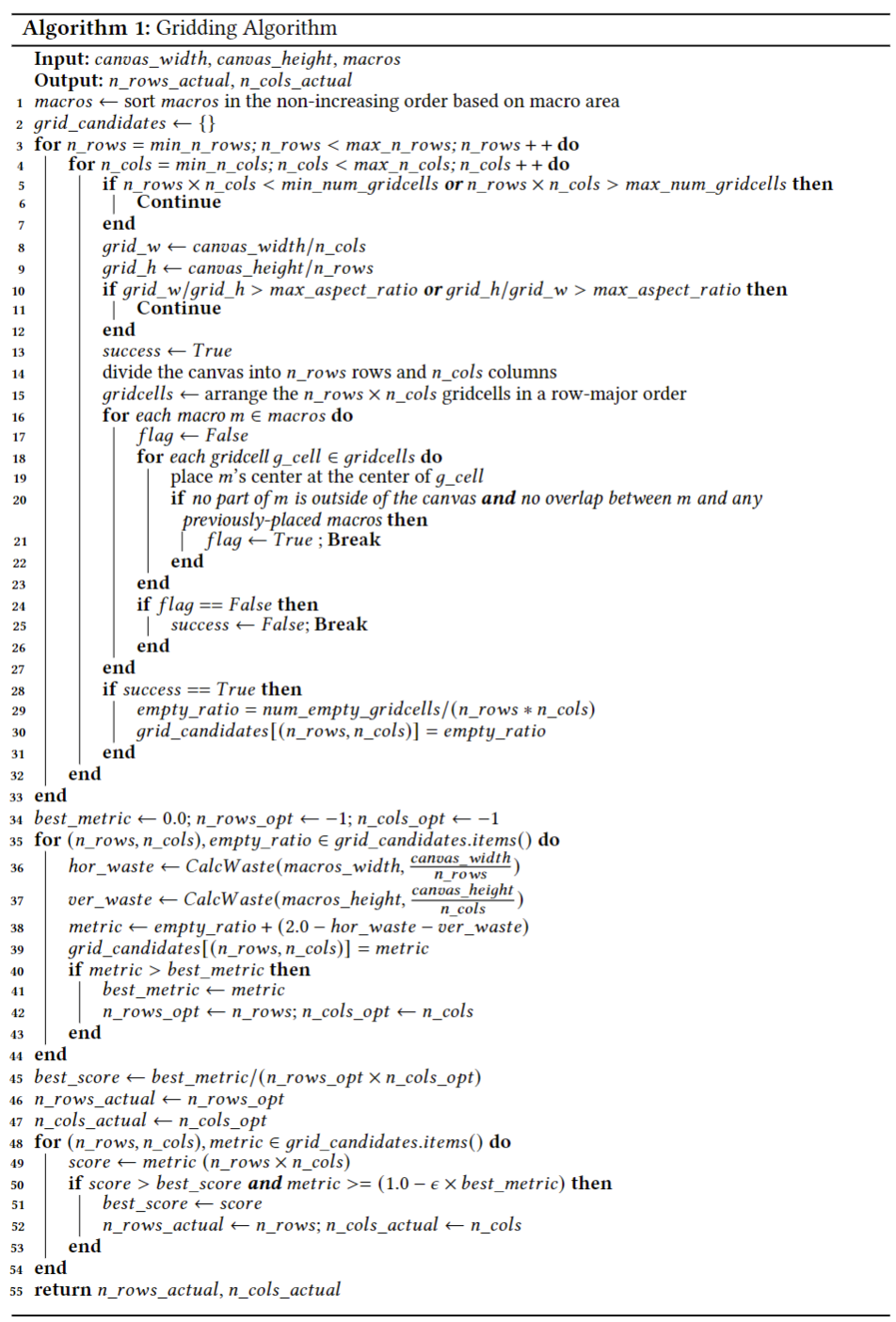

The gridding algorithm starts with the dimensions canvas_width and canvas_height of the layout canvas, as well as a list of macros, where each macro has a width and a height. Macros are not rotatable. The area of a macro is the product of its width and height. Then, the gridding searches over combinations (n_rows, n_cols), with constraints

• min_n_rows <= n_rows < max_n_rows
• min_n_cols <= n_cols < max_n_cols
• min_num_gridcells <= n_rows * n_cols <= max_num_grid_cells
• grid_w / grid_h <= max_aspect_ratio
• grid_h / grid_w <= max_aspect_ratio
• The macros can be packed sequentially on the gridcells. There are n_rows * n_cols gridcells in the canvas. [Algorithm 1 Lines 13-27]

where each gridcell has width of grid_w = canvas_width / n_cols and height of grid_h = canvas_height / n_row. The main idea is to search for a particular (n_rows, n_cols) combination that maximizes the metric related to wasted space.

To evaluate metric for a given grid (n_rows, n_cols), all macros are packed into the gridcells, and several terms (empty_ratio, ver_waste and hor_waste) that reflect wasted space are evaluated.

Packing

Macro packing is performed as follows [Algorithm 1 Lines 13-27]:

• Macros are placed in order of non-increasing macro area.
• All macros are placed, one by one, into the (n_rows, n_cols) gridcells. If the current macro cannot be placed, then the grid is infeasible and the next candidate grid is considered.
• A macro is placed at the first (according to row-major order) gridcell where it can be legally placed.
• Placement of a macro means placing that macro’s center at the center of some gridcell.
• The placement of a macro’s center at the center of some gridcell is legal if (1) no part of the macro is outside of the canvas, and (2) no overlap of the macro with any previously-placed macro is induced.

  Metric

  After macro packing, we can calculate the empty_ratio of current grid, i.e., the number of empty gridcells over the total number of gridcells (n_rows * n_cols). A gridcell is defined to be an empty gridcell if the intersection area of placed macros with it is less than 0.00001 times its area.

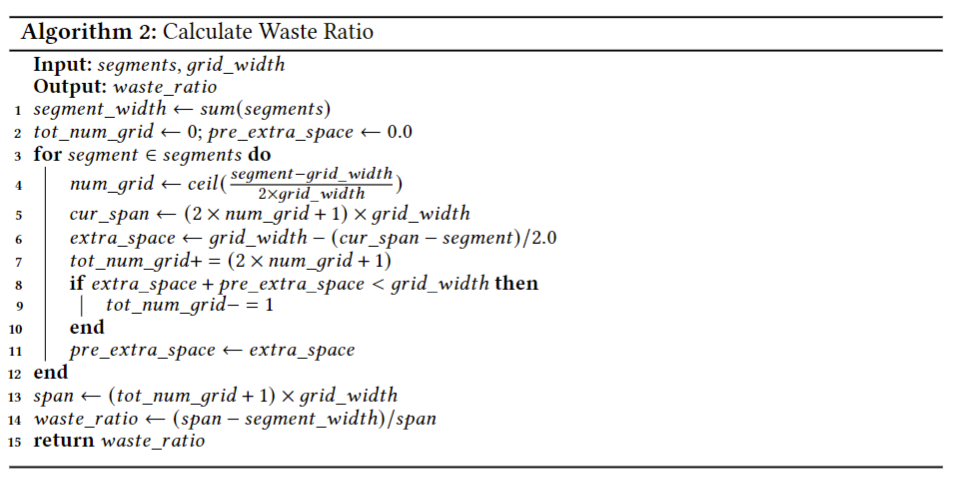

  Next, we calculate the hor_waste and ver_waste as described in the following algorithm.

To calculate horizontal waste hor_waste, we calculate

• width_tot_macros = the sum of widths of all macros in the design.
• width_tot_used_gridcells = the sum of widths of all used gridcells if we pack the macros along the x-axis one by one.

Then, hor_waste = 1.0 - width_tot_macros / width_tot_used_gridcells.

To calculate vertical waste ver_waste, we calculate

• height_tot_macros = the sum of heights of all macros in the design.
• height_tot_used_gridcells = the sum of heights of all used gridcells if we pack the macros along the y-axis one by one.

Then, ver_waste = 1.0 - height_tot_macros / height_tot_used_gridcells.

After calculating empty_ratio, hor_waste and ver_waste, the metric is defined as metric = empty_ratio + 2.0 - hor_waste - ver_waste. The grid with best metric is noted as n_rows_opt and n_cols_opt.

Grid Simplification

Once we have found n_rows_opt and n_cols_opt as described above [Algorithm 1 Lines 34-44], we seek a smaller grid that has similar metric properties. [Algorithm 1 Lines 45-54]
Specifically, we find values of n_rows_actual and n_cols_actual such that its metric is within some tolerance (5\% in Circuit Training) of the optimal metric, and n_rows_actual * n_cols_actual is minimized. This is the grid that is used in Circuit Training. To our understanding, the foregoing procedure results in grids that are of similar sizes, e.g., with ~25 <= n_rows_actual , n_cols_actual <= ~40.

Grouping

Grouping is an important preprocessing step of clustering. The grouping step in Circuit Training requires as inputs: the post-synthesis gate-level netlist (standard cells and hard macros), placed IOs (ports, or terminals), typically at the borders of the chip canvas, and the grid of n_rows rows and n_cols columns of gridcells, which defines the gridded layout canvas. The purpose of grouping, to our understanding, is to ensure that closely-related standard-cell logic elements, which connect to the same macro or the same clump of IOs (denoted as an IO cluster), belong to the same standard-cell clusters.

The Grouping Process

The grouping consists of three steps:

• Group the macro pins of the same macro into a cluster. In Circuit Training, the netlist consists of four types of elements: standard cells, IO ports, macro pins, and macros. The following figure shows an example of netlist representation in Circuit Training. The left part is the real netlist; the right part is the Netlist Protocol Buffer representation in Circuit Training. The solid arrows indicate the real signal net and the dashed arrows indicate the virtual nets between macro A and its macro pins. We can see that the macro pins and the related macro are both basic elements in the netlist, whereas there are no pins of standard cells. Thus, it is necessary to group the macros pins of the same macro into a cluster, because the macro pins of the same macro will always stay together during macro placement. Note that only the macro pins are grouped and the macro itself is not grouped. For example, in this figure, D[0], D[1], D[2], Q[0], Q[1], Q[2] are grouped into cluster_1, but cluster_1 does not include macro A.

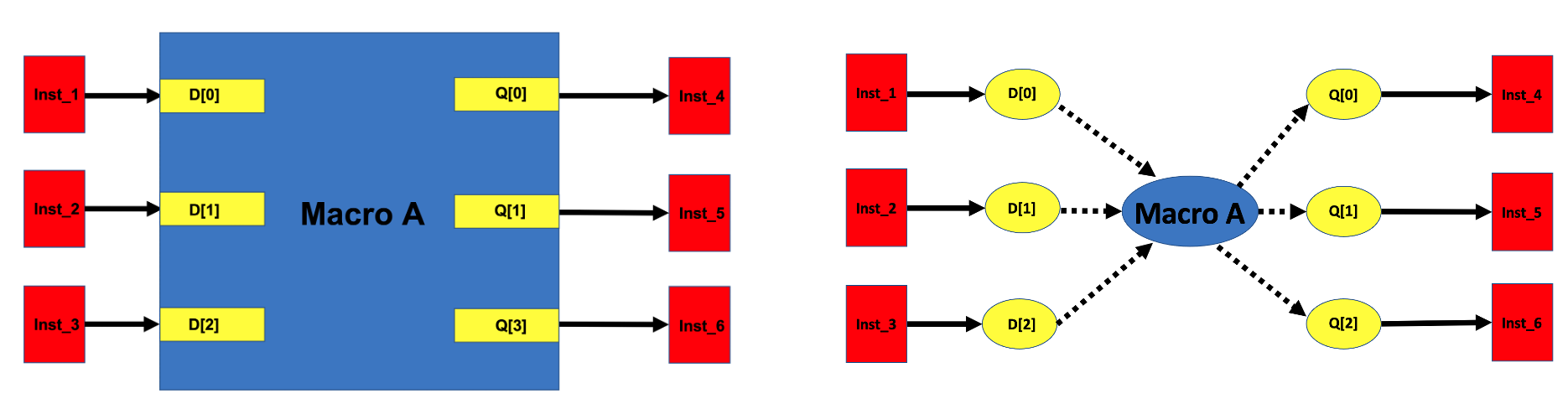

Figure 1. Illustration of the netlist representation in Circuit Training.

• Group the IOs that are within close proximity of each other, boundary by boundary, following the order of LEFT → TOP → RIGHT → BOTTOM. For the LEFT/RIGHT(TOP/Bottom) boundary, we sort all the ports on the boundary based on their y (x) coordinates in a non-decreasing order. Starting from the first IO port on the boundary, we group the IO ports within each grid_height (grid_width) into an IO cluster. For example, in the following figure, we have three IO clusters on the TOP boundary and two IO clusters on the RIGHT boundary. The grid_width and grid_height are calculated based on the n_cols and n_rows:
  • grid_width = canvas_width / n_cols
  • grid_height = canvas_height / n_rows

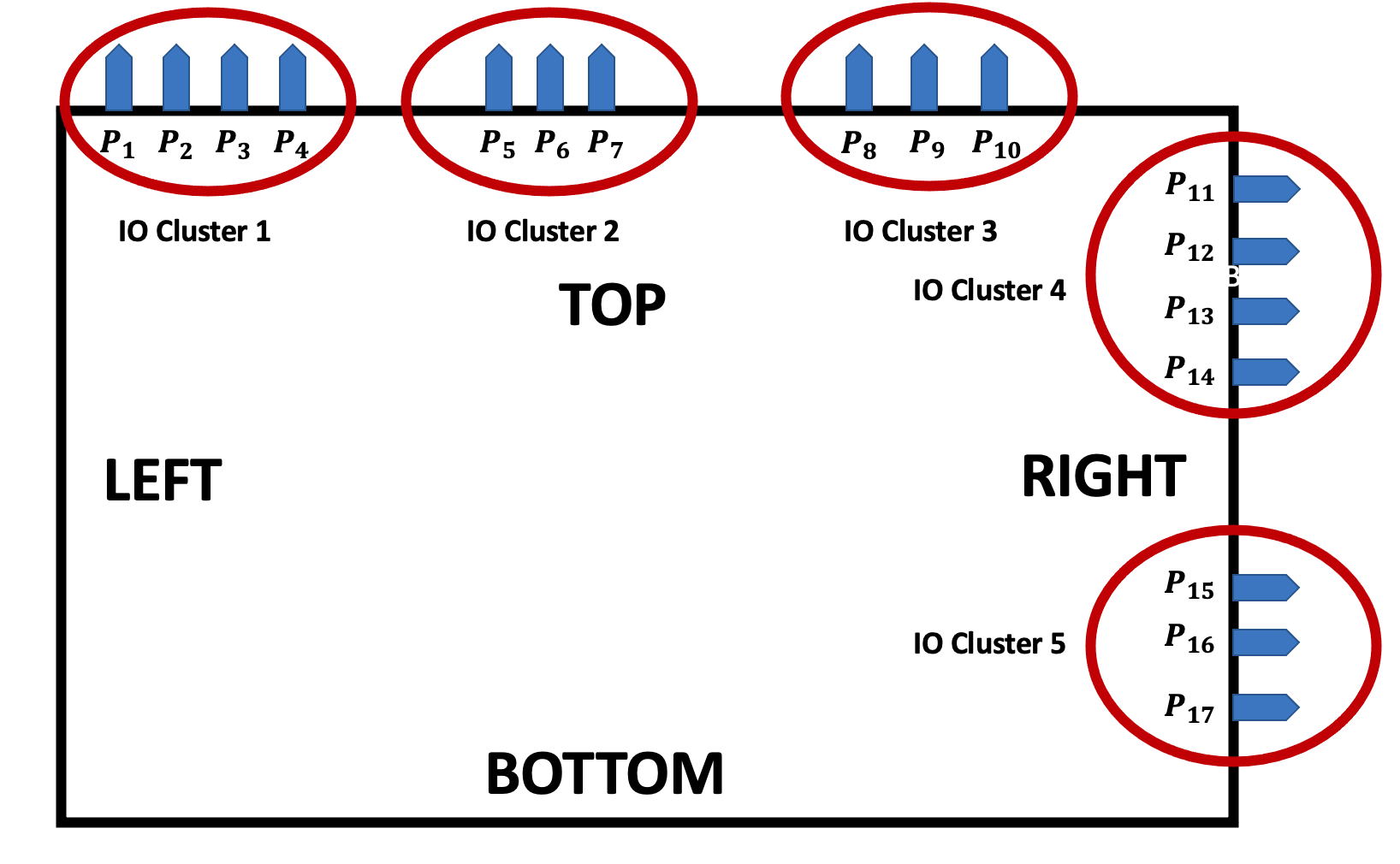

Figure 2. Illustration of grouping IO ports.

• Group the closely-related standard cells, which connect to the same macro or the same IO cluster. Suppose that we have a design with 100 clusters of macro pins (i.e., 100 macros) and 20 clusters of IOs. Before grouping the closely-related standard cells to these clusters of macro pins or IOs, we assign each cluster a cluster id from 0 to 119. Then, for each cluster, we traverse the netlist and assign the same cluster id to the “immediate fanins” and “immediate fanouts” of its element (macro pin or IO). Note that “immediate fanins” is equivalent to “transitive fanins up to level K_in = 1”, and that “immediate fanouts” is equivalent to “transitive fanouts up to level K_out = 1”. It is our understanding that both K_in and K_out are always set to a default value of 1 in Circuit Training. However, other values might be applied. In our implementation, we traverse the netlist in a depth-first-search manner. All the elements (standard cell, macro pin or IO ports) with the same cluster id form a cluster. Each cluster is recorded in the “.fix file” that is part of the input to the hMETIS hypergraph partitioner when the standard cells are grouped into soft macros. The part id of each cluster is the same as its cluster id. Note that a macro does not belong to any cluster, and thus is not fixed when we call the hMETIS hypergraph partitioner.

How Groups Are Used

Each group is recorded in the “.fix file” that is part of the input to the hMETIS hypergraph partitioner when the gate-level netlist is clustered into soft macros.

How Grouping Scripts Are used

We provide (an example) about the usage of our grouping scripts. Basically, our grouping scripts take the following as inputs: (i) (setup_file) including enablement information (lefs/libs), synthesized gate-level netlist (.v), and def file with placed IOs (.def); (ii) n_rows and n_cols determined by the (Gridding) step; (iii) K_in and K_out parameters; and (iv) global_net_threshold for ignoring global nets. If a net has more than global_net_threshold instances, we ignore these nets when we search “transitive” fanins and fanouts. After running grouping scripts, you will get the .fix file.

Hypergraph clustering (soft macro definition)

Hypergraph clustering is, in our view, one of the most crucial undocumented portions of Circuit Training.

Information provided by Google.

The Methods section of the Nature paper provides the following information.

• “(1) We group millions of standard cells into a few thousand clusters using hMETIS, a partitioning technique based on the minimum cut objective. Once all macros are placed, we use an FD method to place the standard cell clusters. Doing so enables us to generate an approximate but fast standard cell placement that facilitates policy network optimization.”

• “Clustering of standard cells. To quickly place standard cells to provide a signal to our RL policy, we first cluster millions of standard cells into a few thousand clusters. There has been a large body of work on clustering for chip netlists. As has been suggested in the literature, such clustering helps not only with reducing the problem size, but also helps to ‘prevent mistakes’ (for example, prevents timing paths from being split apart). We also provide the clustered netlist to each of the baseline methods with which we compare. To perform this clustering, we employed a standard open-source library, hMETIS, which is based on multilevel hypergraph partitioning schemes with two important phases: (1) coarsening phase, and 2) uncoarsening and refinement phase.”

Therefore, at least one purpose of clustering is to enable fast placement of standard cells to provide a signal to the RL policy. The Methods section subsequently explains how the clusters are placed using a force-directed approach:

• “Placement of standard cells. To place standard cell clusters, we use an approach similar to classic FD methods. We represent the netlist as a system of springs that apply force to each node, according to the weight×distance formula, causing tightly connected nodes to be attracted to one another. We also introduce a repulsive force between overlapping nodes to reduce placement density. After applying all forces, we move nodes in the direction of their force vector. To reduce oscillations, we set a maximum distance for each move.”

The Circuit Training FAQ adds:

• “How do we perform clustering of standard cells? In our Nature paper, we describe how to use hMETIS to cluster standard cells, including all necessary settings. For detailed settings, please see Extended Data Table 3 from our Nature article. Internally, Google pays for a commercial license, but non-commercial entities are welcome to use a free open-source license.”

Finally, the Methods section of the Nature paper also explains the provenance of the netlist hypergraph:

• “Synthesis of the input netlist. We use a commercial tool to synthesize the netlist from RTL. Synthesis is physical-aware, in the sense that it has access to the floorplan size and the locations of the input/output pins, which were informed by inter- and intra-block-level information.”

What exactly is the Hypergraph, and how is it partitioned?

From the above information sources, the description of the Grouping process, and information provided by Google engineers, we are fairly certain of the following.

• (1) Clustering uses the hMETIS partitioner, which is run in “multiway” mode. More specifically, hMETIS is always invoked with npart more than 500, with unit vertex weights. The hyperparameters given in Extended Data Table 3 of the Nature paper are used. (Additionally, Circuit Training explicitly sets reconst=1 and dbglvl=0.)

• (2) The hypergraph that is fed to hMETIS consists of macros, macro pins, IO ports, and standard cells. The “fixed” file generated by the Grouping process, is also fed as a .fix input file to hMETIS.

• (3) All hypergraph partitioning applications in physical design (of which we are aware) perform some kind of thresholding to ignore large hyperedges. Circuit Training ignores all hyperedges of size greater than 500.

Before going further, we provide a concrete example for (2).

• Suppose that we have a design with 200,000 standard cells, 100 macros, and 1,000 IO ports.

• Furthermore, using terms defined in Grouping, suppose that each of the 100 macros induces a cluster of 300 standard cells, and that the IO ports collectively induce 20 IO clusters, each of which induces a cluster of 50 standard cells.

• Then, there will be 100 + 20 = 120 clusters. Each element (macro pin, IO port or standard cell) in these clusters corresponds to an entry of the .fix file. The cluster id starts from 0 to 119.

• The number of individual standard cells in the hypergraph that is actually partitioned by hMETIS is 200,000 - (100 * 300) - (20 * 50) = 169,000.

• Suppose that each macro has 64 macro pins. The hypergraph that is actually partitioned by hMETIS has 200,000 + 100 + 1000 + 100 * 64 = 207,500 vertices. Although there are both macro pins and macros in the hypergraph, all the nets related to macros are connected to macro pins and there are no hyperedges incident to macros. Each hyperedge in the hypergraph corresponds to a net in the netlist. Note that Circuit Training assumes that there is only one output pin for each standard cell, thus there is only one hyperedge {A, B, C, D, E} for the following case.

Figure 3. Illustration of net model used in Circuit Training.

• nparts = 500 + 120 = 620 is used when applying hMETIS to this hypergraph.

Break up clusters that span a distance larger than breakup_threshold

After partitioning the hypergraph, we can have nparts clusters. Then Circuit Training breaks up clusters that span a distance larger than breakup_threshold. Here breakup_threshold = sqrt(canvas_width * canvas_height / 16). For each cluster c, the breakup process is as follows:

• cluster_lx, cluster_ly, cluster_ux, cluster_uy = c.GetBoundingBox()
• if ((cluster_ux - cluster_lx) <= breakup_threshold) && (cluster_uy - cluster_ly) <= breakup_threshold))
  • Return
• cluster_x, cluster_y = c.GetWeightedCenter(). Here the weighted center of cluster c is the average location of all the standard cells in the cluster, weighted according to their area.
• use (cluster_x, cluster_y) as the origin and breakup_threshold as the step, to divide the bounding box of c into different regions.
• the elements (macro pins, macros, ports and standard cells) in each region form a new cluster. The following figure shows an example: the left part shows the cluster c₁ before the breakup process, and the blue dot is the weighted center of c₁; the right part shows the clusters after the breakup process. The “center” cluster still has the cluster id of 1.

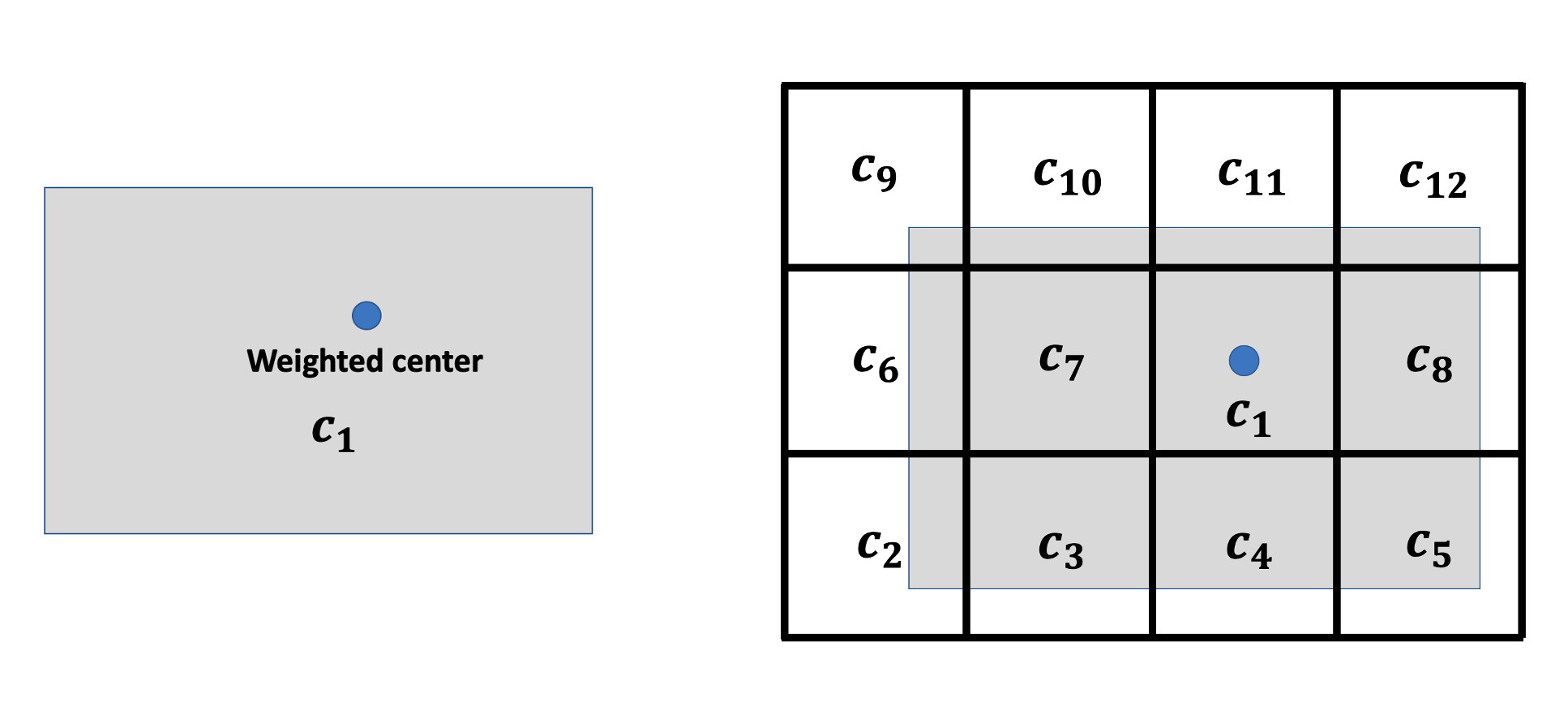

Figure 4. Illustration of breaking up a cluster.

Note that since the netlist is generated by physical-aware synthesis, we know the (x, y) coordinate for each instance. This was confirmed in July 2022 by Google, here.

Recursively merge small adjacent clusters

After breaking up clusters which span over a large distance, there may be some small clusters with only tens of standard cells. In this step, Circuit Training recursively merges small clusters to the most adjacent cluster if they are within a certain distance closeness (breakup_threshold / 2.0), thus reducing the number of clusters. A cluster is defined to be a small cluster if the number of elements (macro pins, macros, IO ports and standard cells) is less than or equal to max_num_nodes, where max_num_nodes = number_of_vertices // number_of_clusters_after_breakup // 4. The merging process is as following:

• flag = False
• while (flag == False):
  • create adjacency matrix adj_matrix where adj_matrix[i][j] represents the number of connections between cluster c_i and cluster c_j. For example, in the Figure 1, suppose A, B, C, D and E respectively belong to cluster c₁, …, c₅, we have adj_matrix[1][2] = 1, adj_matrix[1][3] = 1, …., adj_matrix[5][3] = 1 and adj_matrix[5][4] = 1. We want to emphasize that although there are no hyperedges incident to macros in the hypergraph, adj_matrix considers the “virtual” connections between macros and macro pins. That is to say, if a macro and its macros pins belong to different clusters, for example, macro A in cluster c₁ and its macro pins in cluster c₂, we have adj_matrix[1][2] = 1 and adj_matrix[2][1] = 1.
  • calculate the weighted center for each cluster. (See “Break Up Clusters” above for details.)
  • flag = True
  • for each cluster c
    • if c is not a small cluster
      • Continue
    • find all the clusters close_clusters which are close to c, i.e., the Manhattan distance between their weighted centers and the weighted center of c is less than or equal to closeness
    • if there is no cluster close to c
      • Continue
    • find the most adjacent cluster adj_cluster of c in close_clusters, i.e., maximize adj_matrix[c][adj_cluster]
    • merge c to adj_cluster
    • if adj_cluster is a small cluster
      • flag = False

Pending Clarifications

We call readers’ attention to the existence of significant aspects that are still pending clarification here.
While Gridding and Grouping are hopefully well-understood, we are still in the process of documenting and implementing such aspects as the following.

• Pending clarification #1: Is the output netlist from synthesis modified before it enters (hypergraph clustering and) placement? All methodologies that span synthesis and placement (of which we are aware) must make a fundamental decision with respect to the netlist that is produced by logic synthesis, as that netlist is passed on to placement: (A) delete buffers and inverters to avoid biasing the ensuing placement (spatial embedding) with the synthesis tool’s fanout clustering, or (B) leave these buffers and inverters in the netlist to maintain netlist area and electrical rules (load, fanout) sensibility. We do not yet know Google’s choice in this regard. (However, Google’s public Ariane netlist does contain buffers and inverters.) Our experimental runscripts support both (A) and (B).

• [June 13] Update to Pending clarification #3: We are glad to see grouping (clustering) added to the Circuit Training GitHub. The new scripts refer to (x,y) coordinates of nodes in the netlist, which leads to further pending clarifications (noted here). The solution space for how the input to hypergraph clustering is obtained has expanded. A first level of options is whether (A) a non-physical synthesis tool (e.g., Genus, DesignCompiler or Yosys), or (B) a physical synthesis tool (e.g., Genus iSpatial or DesignCompiler Topological (Yosys cannot perform physical synthesis)), is used to obtain the netlist from starting RTL and constraints. In the regime of (B), to our understanding the commercial physical synthesis tools are invoked with a starting .def that includes macro placement. Thus, we plan to also enable a second level of sub-options for determining this macro placement: (B.1) use the auto-macro placement result from the physical synthesis tool, and (B.2) use a human PD expert (or, OpenROAD RTL-MP) macro placement. We have posted a chronology of progress as we clarify these issues, in Our Progress. Based on netlist instance names, we believe that Google Brain used the DC-Topo tool for physical synthesis.

Our Implementation of Hypergraph Clustering.

Our implementation of hypergraph clustering takes the synthesized netlist and a .def file with placed IO ports as input, then generates the clustered netlist (in lef/def format) using hMETIS (1998 binary). In default mode, our implementation will generate the clustered netlist in protocol buffer format and corresponding plc file. We implement the entire flow based on OpenROAD APIs. Please refer to the OpenROAD repo for explanation of each Tcl command.

Please note that The OpenROAD Project does not distribute any compiled binaries. You need to build your own OpenROAD binary before you run our scripts.

Input file: setup.tcl (you can follow the example to set up your own design) and FixFile (This file is generated by our Grouping scripts)

Output_files: the clustered netlist in protocol buffer format and corresponding plc file.

Note that the example that we provide is the ariane design implemented in NanGate45. The netlist and corresponding def file with placed instances are generated by Genus iSpatial flow. Here the macro placement is automatically done by the Genus and Innovus tools, i.e., according to Flow (B.1) above.

Thanks

We thank Google engineers for Q&A in a shared document, as well as live discussions on May 19, 20

, that explained the hypergraph clustering method used in Circuit Training. All errors of understanding and implementation are the authors’. We will rectify such errors as soon as possible after being made aware of them.
